Reed Meters
Piusi K24

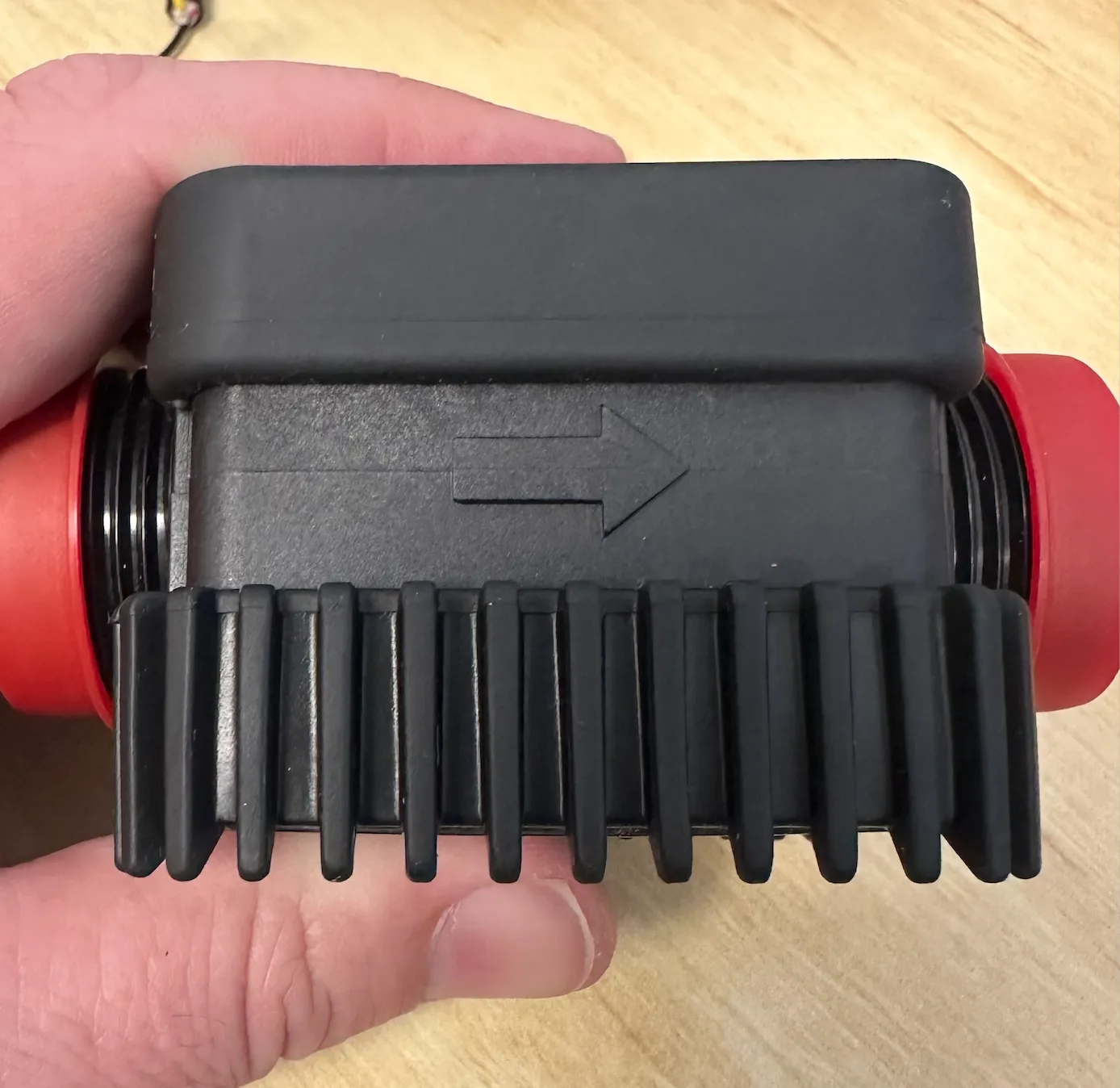

Reed pulse meters are connected using Signal and Ground wires. While optional, it is strongly recommended to use a shielded cable for improved signal integrity and noise reduction.
Pulse Meter Wiring Details
The table below outlines the recommended pin assignments for connecting a pulse meter to the system. Use a shielded cable for best performance, with the shield connection being optional but recommended.
| Jumper Block | Pin Number | Pin Label | Name | Description |
|---|---|---|---|---|
| J18 | 3 | Pulse Input | Pulse Signal | |
| J18 | 4 | GND | Pulse Meter 0V | |
| J11 | 6 | Shield | Shield Wire | Optional |

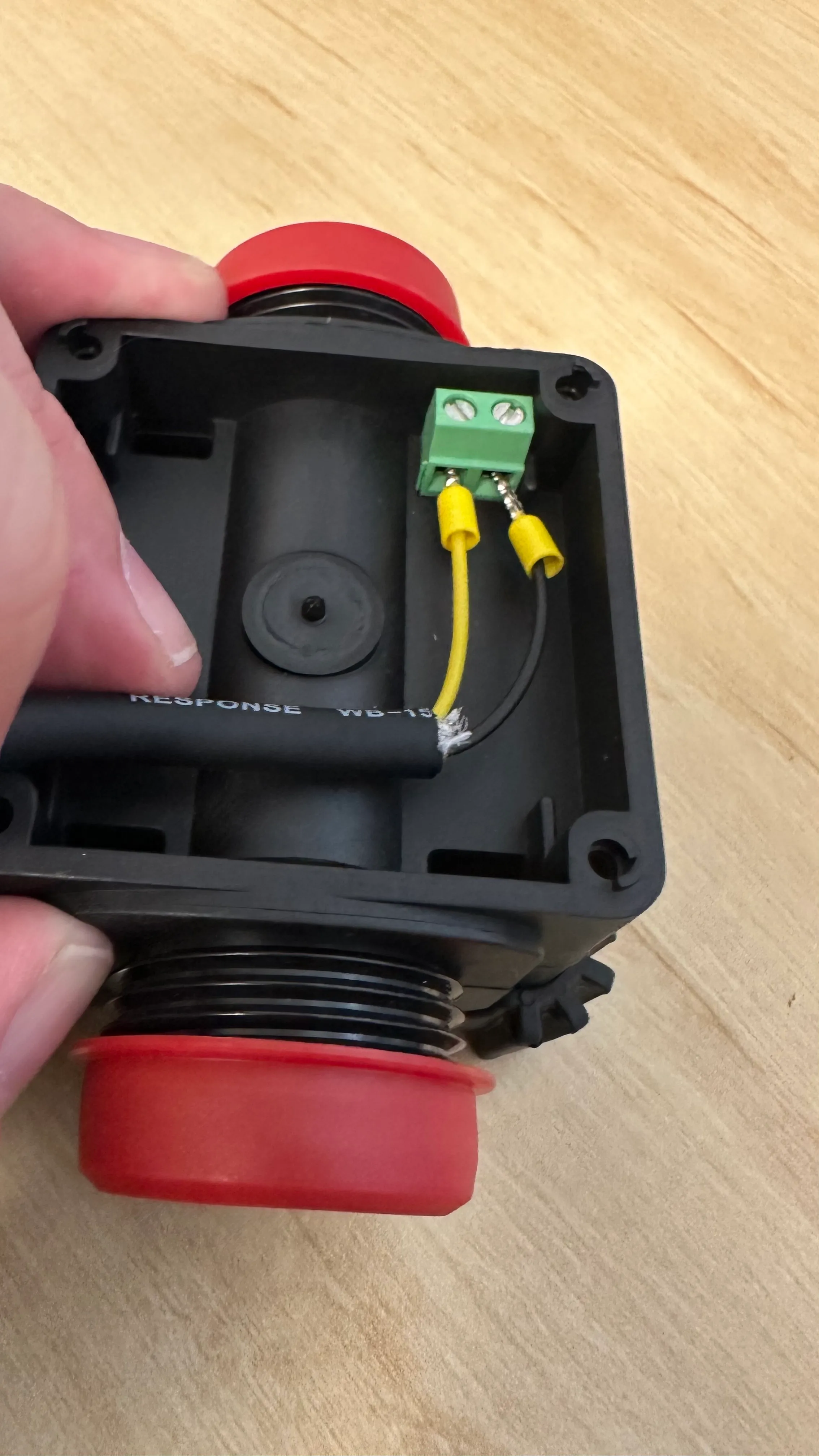

Connect the other ends of the wires to the corresponding terminals on the pulse meter body, ensuring proper signal and ground alignment.
The calibration factor for this meter is 87.73 pulses per litre (pulse/L).
