Edit QR Code

The Edit QR Code feature allows administrators to update existing QR code details such as equipment, compartment, or allocation status. This ensures data accuracy and helps maintain correct associations within the system.

How to Edit QR Code in Fuellox

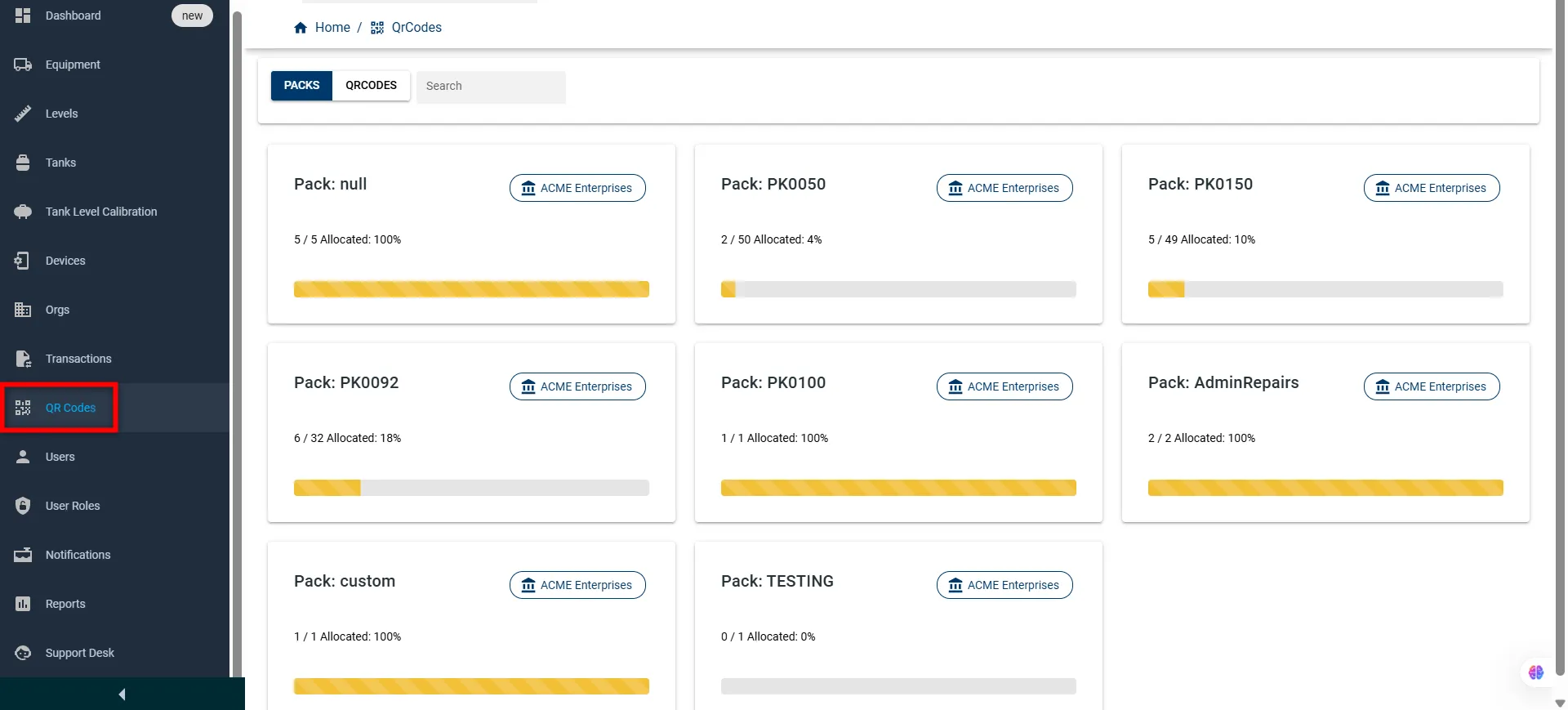

1. Log in to the Fuellox platform by visiting app.fuellox.io and select QR Codes from the left-side navigation menu.

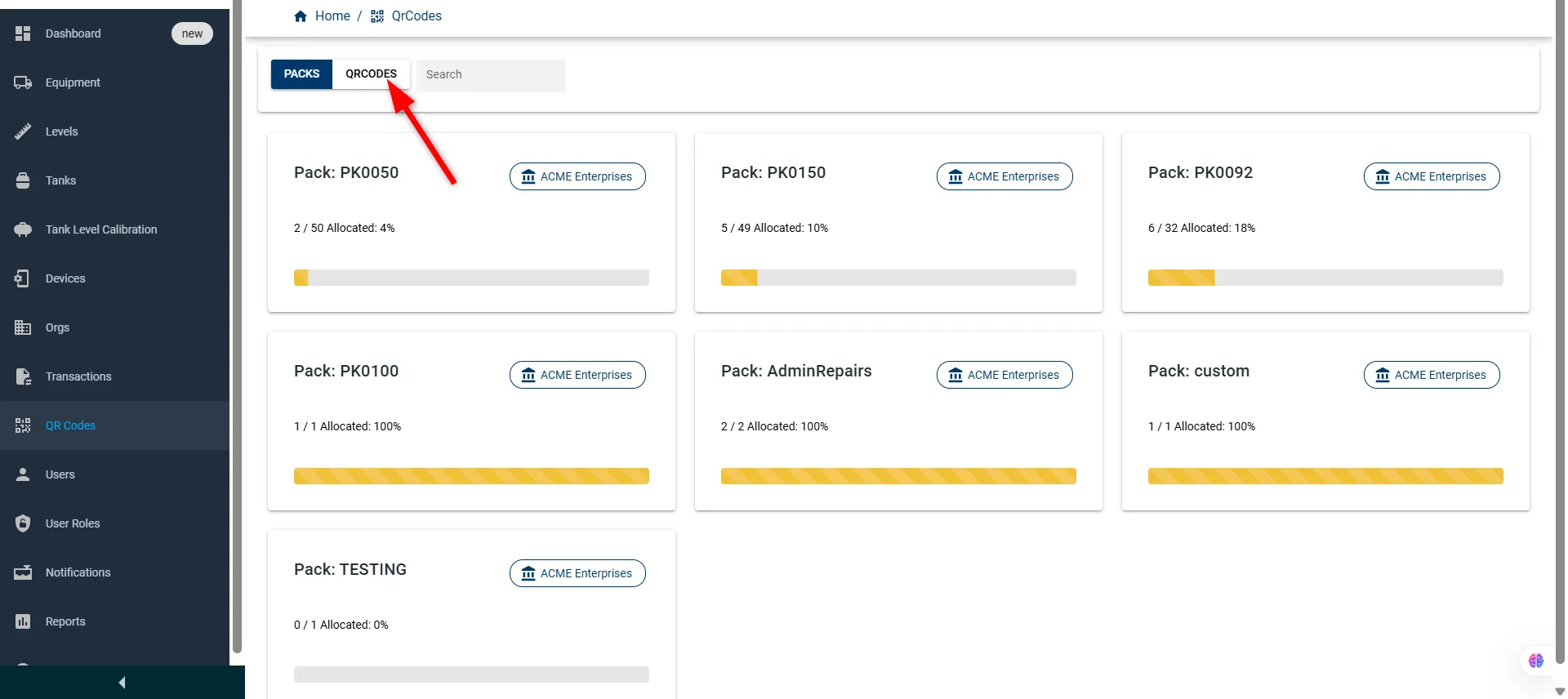

2. Click on the QR CODES tab at the top of the QR Codes section to switch from Packs to the detailed QR Code list view.

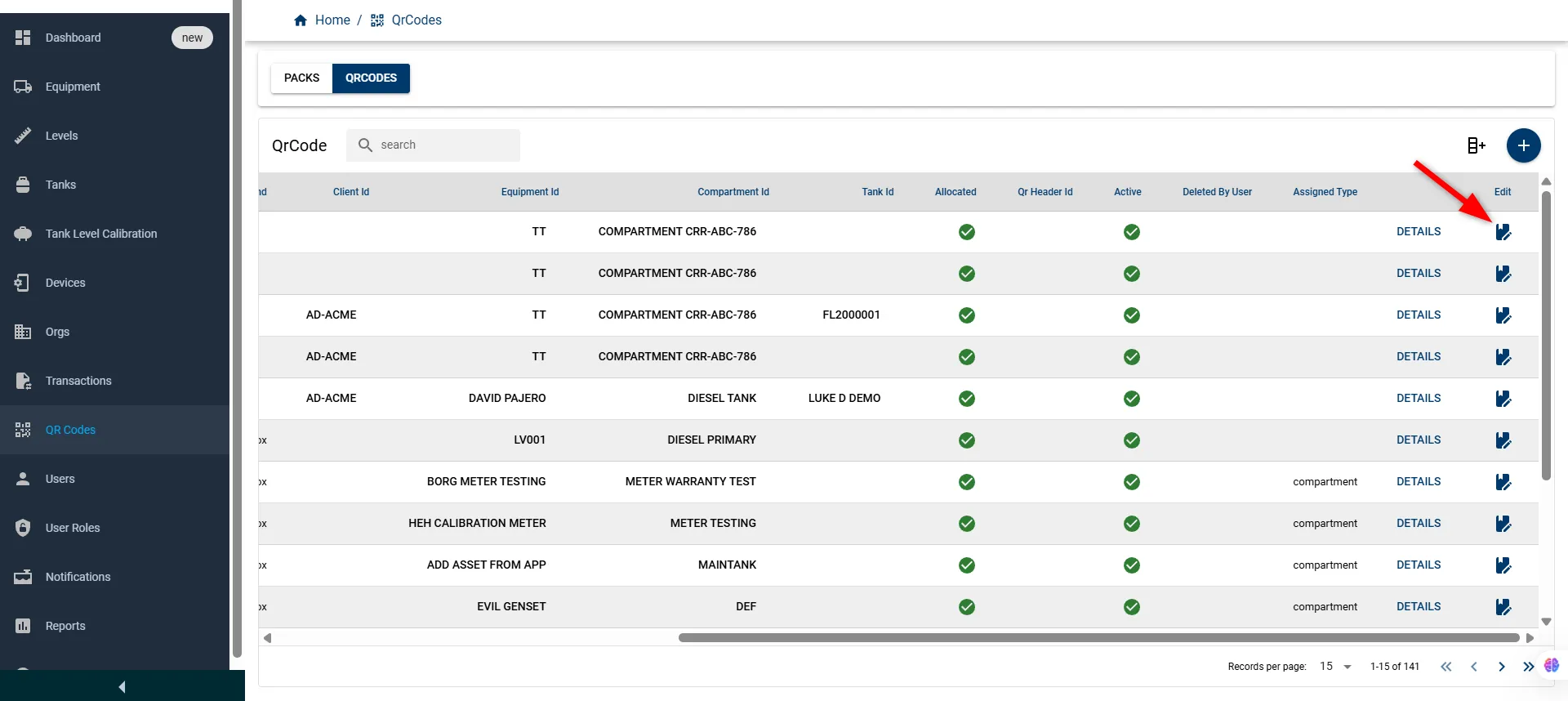

3. The QR Code page will open, click the Edit icon corresponding to the entry you wish to modify.

   Note

   Click on any entry under the Equipment or Compartment columns to quickly navigate to their respective details pages for more information.

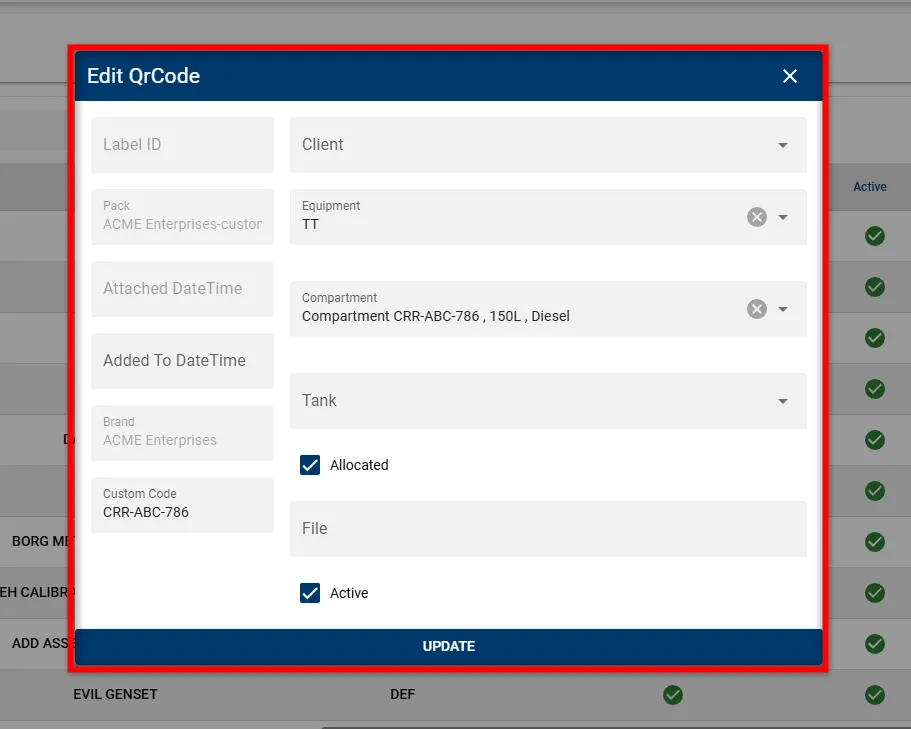

4. An Edit QR Code window will appear, pre-filled with the existing data. Update the required fields as needed:

   Field Name	Description	Type	Required
   Label ID	Unique identifier for the QR code label	Read-only Text	No
   Client	Select the client associated with this QR code	Dropdown	Yes
   Pack	Predefined pack from which the QR code was created	Read-only Text	No
   Equipment	Equipment associated with the QR code	Dropdown	Yes
   Attached DateTime	Date and time when the QR code was attached	Read-only Text	No
   Compartment	Compartment allocated to this QR code	Dropdown	Yes
   Added To DateTime	Date when this QR code was added to the entity	Read-only Text	No
   Tank	Tank ID associated with the QR code	Dropdown	Optional
   Brand	Name of the organization/brand	Read-only Text	No
   Custom Code	Internal code identifier for QR code customization	Text	Optional
   File	Any associated file or document	Text (optional)	No
   Allocated	Indicates if the QR code is currently allocated	Checkbox	Yes
   Active	Status of the QR code (active/inactive)	Checkbox	Yes

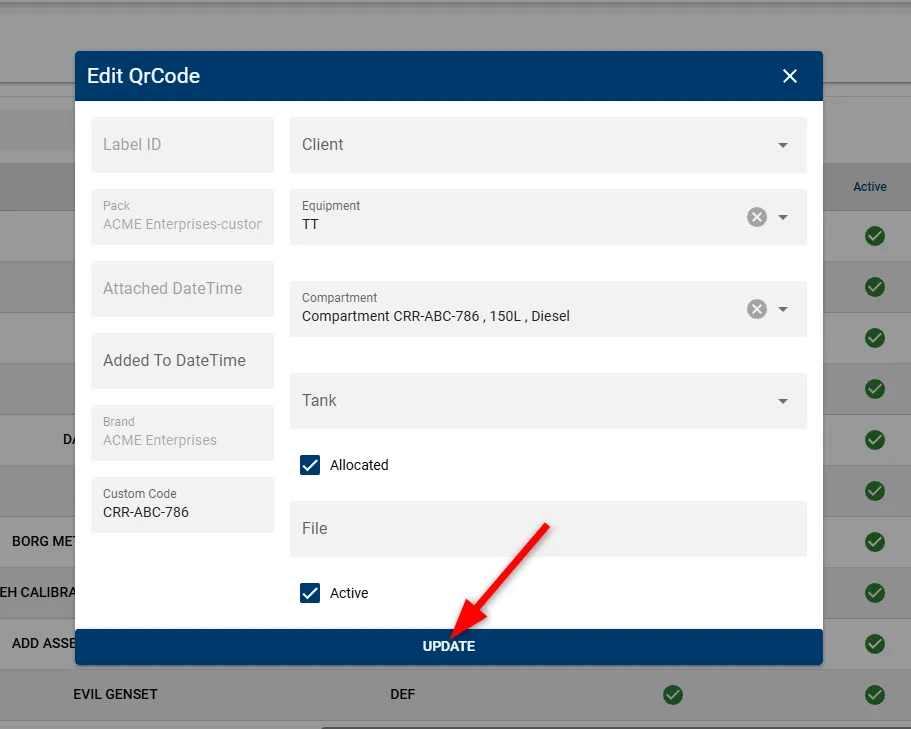

5. After making the necessary changes, click the UPDATE button to save.



Once updated, the QR code entry will reflect in the list with its revised values, confirming a successful update.

Note

Looking to log a new QR Code instead? Click here to learn how to create a new QR Code in Fuellox.

Note

If you’re seeing something different on your screen, it could be due to permission restrictions. Please contact your Fuellox Administrator to ensure you have the appropriate access rights.
