Nozzle Switch

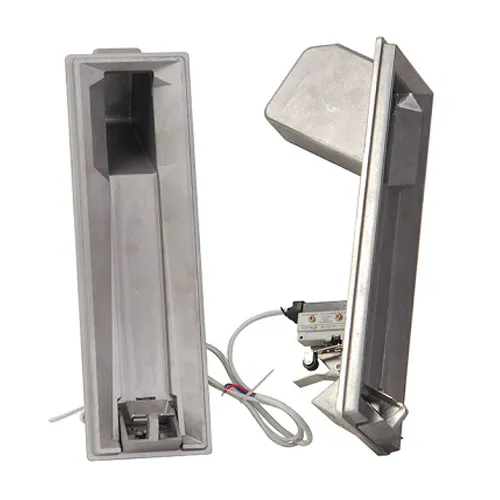

The nozzle switch prevents pump operation until the nozzle is removed from its holder, providing an additional interlock for safe fuel dispensing. When integrated with Fuellox, it ensures the pump can only start when the nozzle is actively in use.

Nozzle Switch

Connection

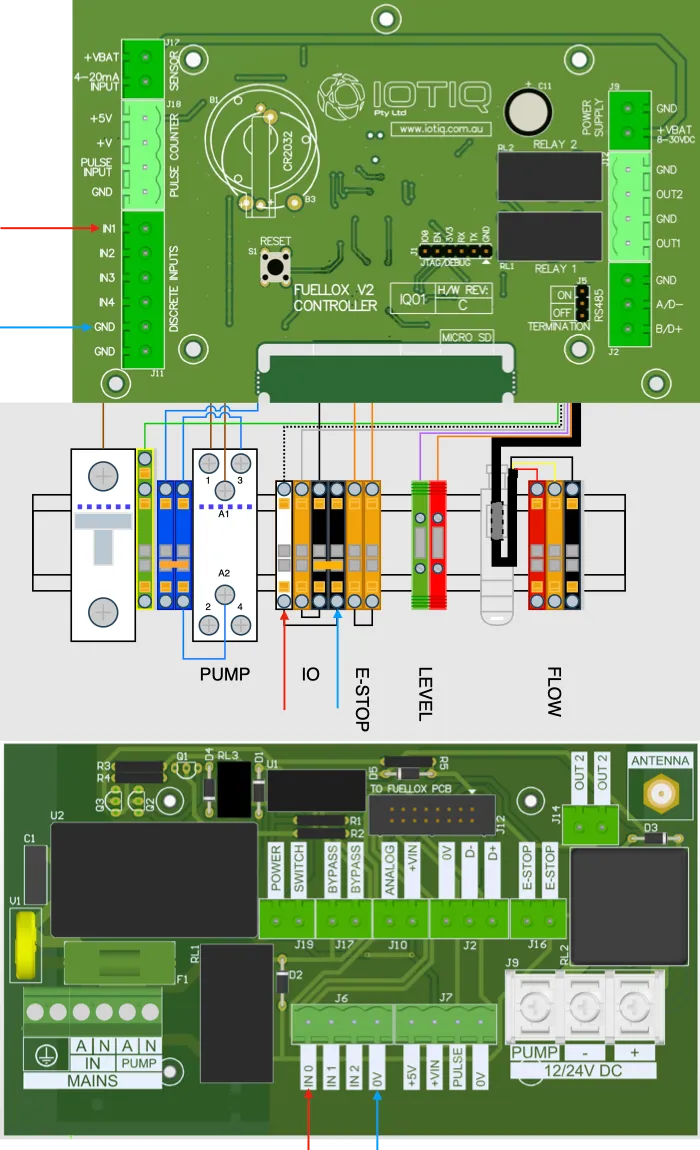

Fuellox has programmable inputs. Insert the two nozzle switch wires into one of the inputs and the GND terminal, as shown below.

Nozzle Switch Connection

From the Fuellox Device Configuration select the Input to accept the Nozzle Switch. Simply connect the Nozzle switch wires (in any orientation) to the selected Input and the GND.

For Fuellox HD variants see the wiring diagram for your variant.

Summary

Nozzle Switches are a cost effective enhancement to Fuellox installations.

Return to Getting Started
