Hi Gain BLE Antenna
Overview

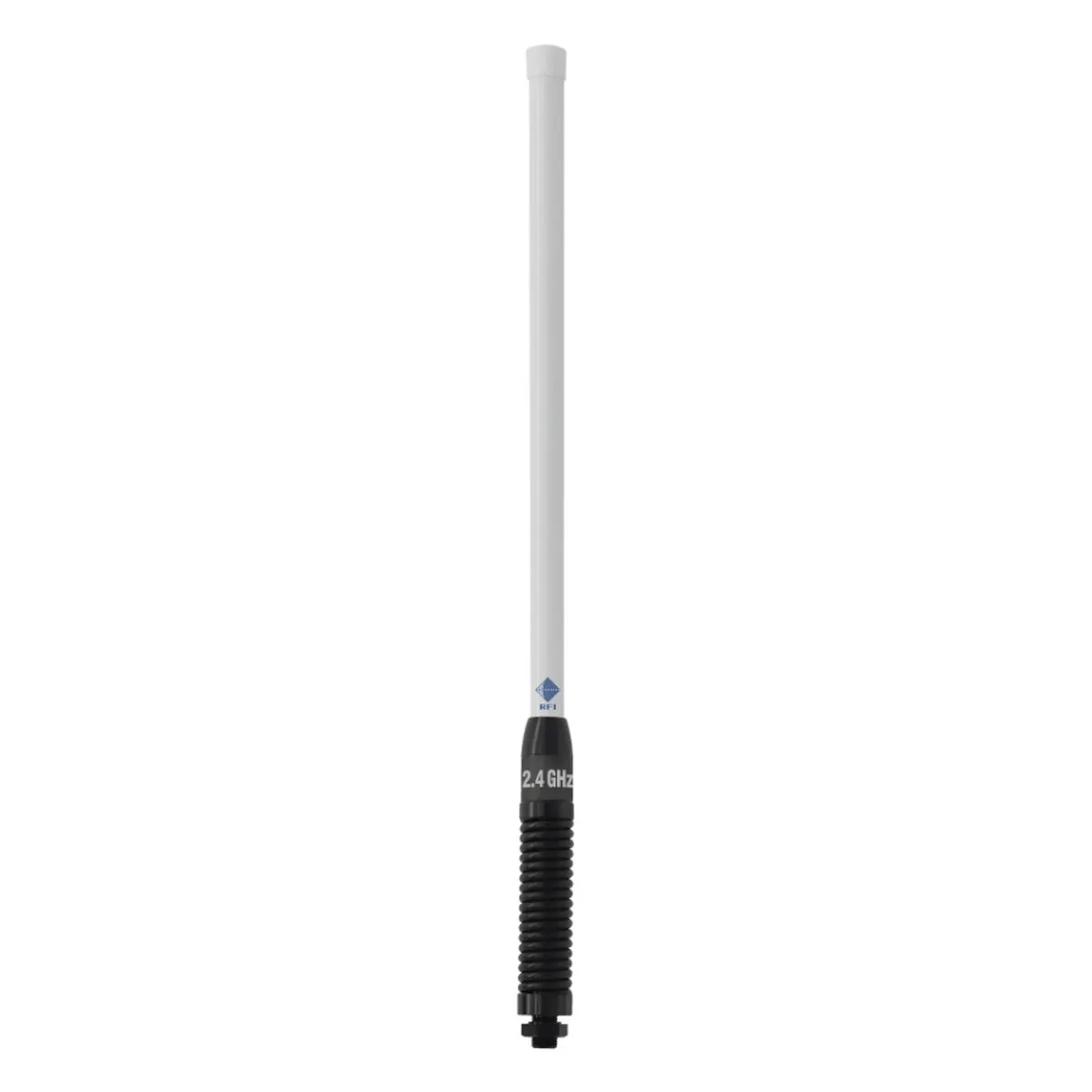

The Fuellox Hi Gain BLE Antenna is specifically engineered for mobile and outdoor applications requiring extended range and consistent performance. With its durable fiberglass radome and heavy-duty stainless-steel spring, it provides a robust, high-performance solution ideal for large tanks, mobile vehicles, and harsh external environments.
Whether you’re enhancing range in a large vehicle fleet or ensuring reliable communication in remote deployments, this antenna is an optimal upgrade for Bluetooth Low Energy (BLE) connectivity.
Technical Specifications
| Item | Spec |
|---|---|
| Mounting | Threaded stud, 13mm for 16mm hole |
| Frequency (MHz) | 2400 – 2500 |
| Tuned Bandwidth | Full. No tuning required |
| VSWR | < 1.5:1 VSWR |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 6 |
| Frequency Range [MHz] | 2400 – 2500 |
| Connector | SMA(M) |
| Cable and Connector | 5.0m CELLFOIL cable terminated with SMA male connector |
| Connects directly to PCB Pigtail | |
| Antenna Type | Omni-directional |
| Antenna Application | Outdoor & Vehicle Antenna |
| Frequency Band | Single Band 2.4GHz (suitable for BLE) |
| Antenna Configuration | SISO (Single Input Single Output) |
| Beamwidth E / H | 22° / 360° |
| Dimensions | 420mm (L) × 16mm (Diameter), Weight: 0.26kg |
Performance Characteristics

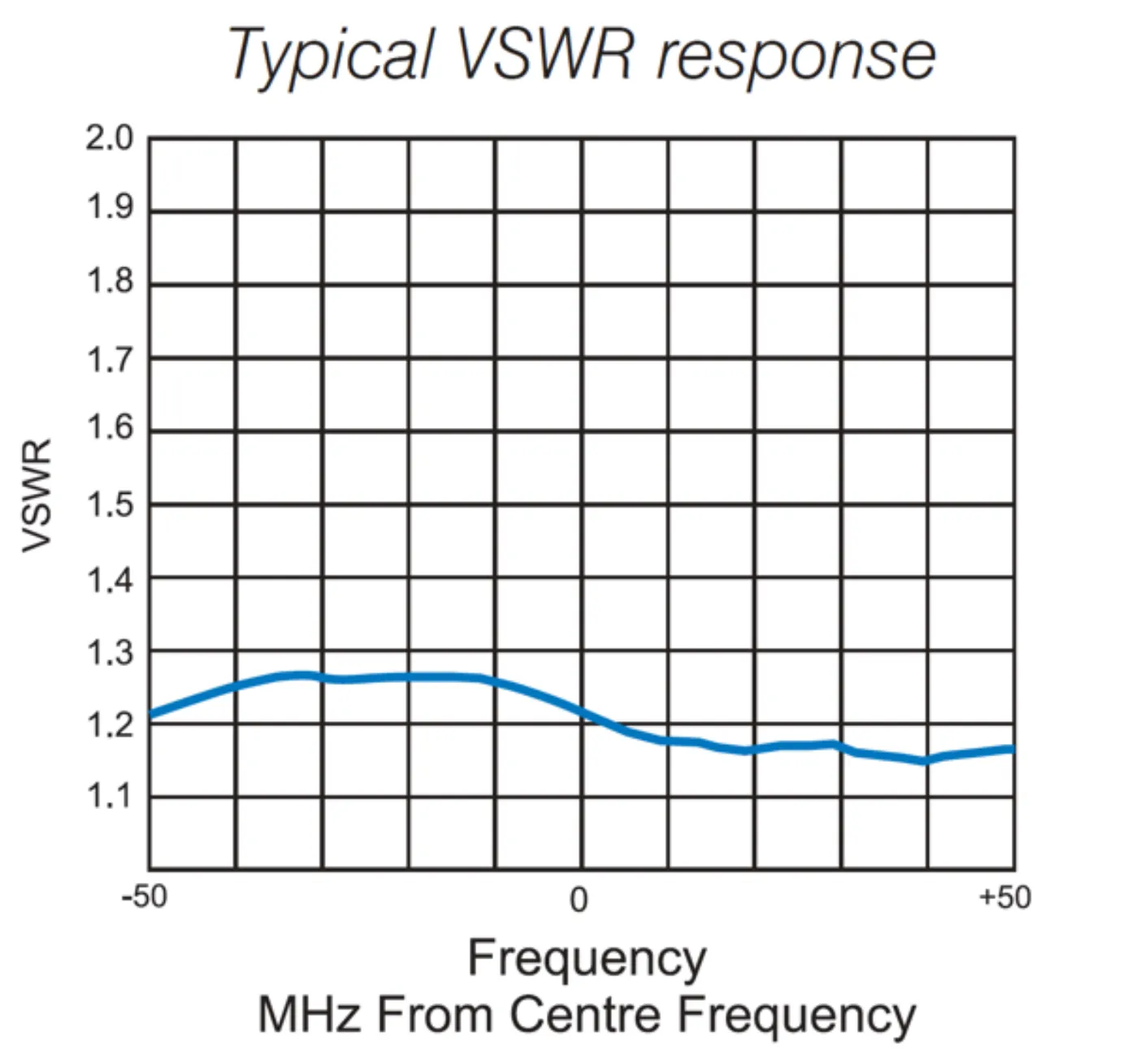

VSWR Response
The antenna maintains a low VSWR (< 1.5) across its operational range of 2400–2500 MHz, ensuring minimal signal reflection and improved transmission efficiency.
Graph shows stable performance across BLE frequency band.

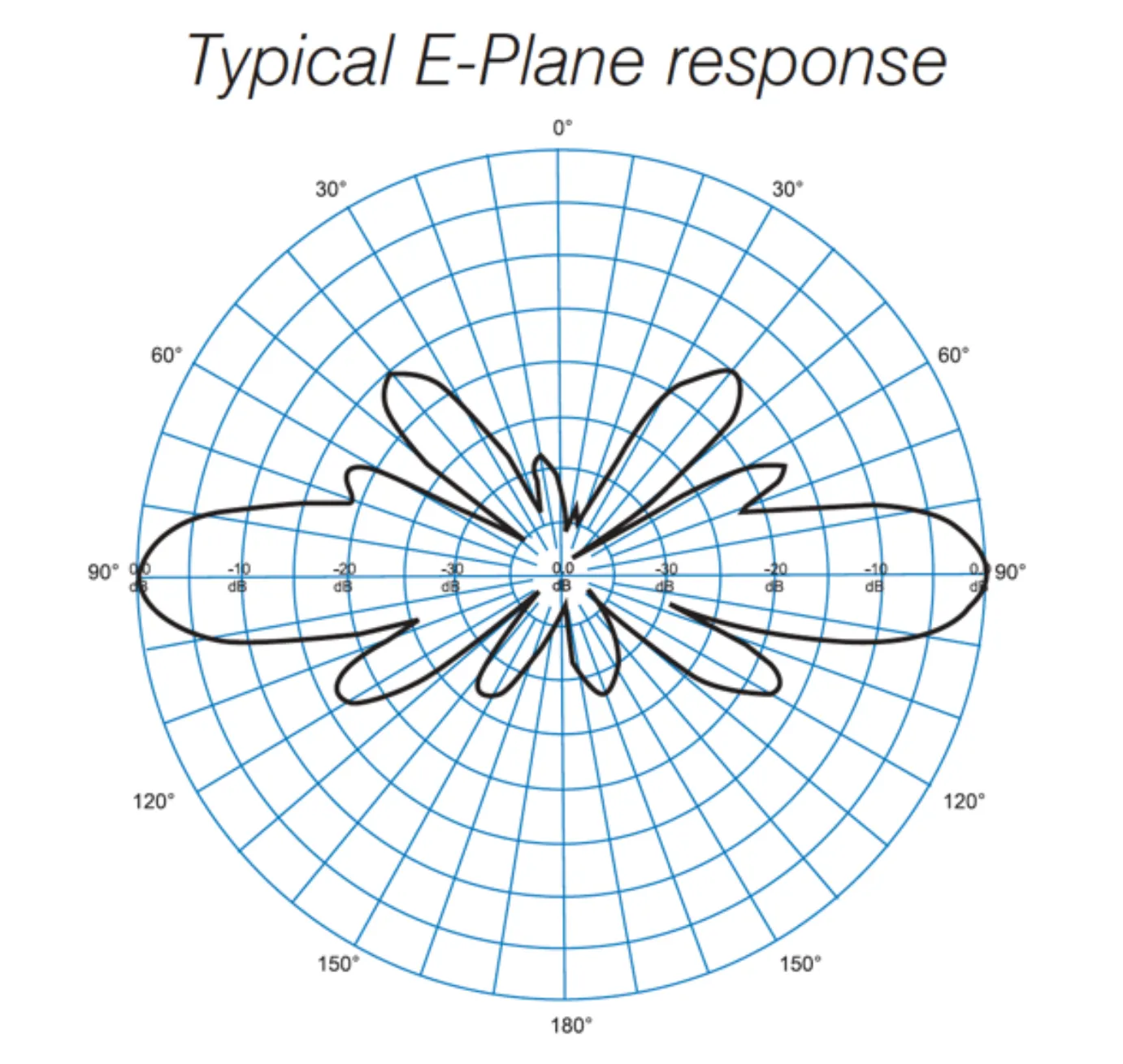

E-Plane Radiation Pattern
The 360° horizontal beamwidth ensures omni-directional coverage, while the 22° elevation beamwidth provides focused vertical performance ideal for vehicle-mounted or tank installations.
Diagram represents signal radiation pattern in the E-plane.
Applications
- Mobile fuel dispensing systems
- BLE-based communication modules
- Vehicle-mounted or outdoor Fuellox installations
- Situations requiring enhanced BLE range and durability
Benefits
- Plug-and-play: No tuning required
- High durability: Fiberglass and stainless-steel build for rugged environments
- Extended range: High gain and low VSWR for reliable communication
- Universal mount: Compatible with Fuellox hardware and standard antenna ports
