Fuellox Eco

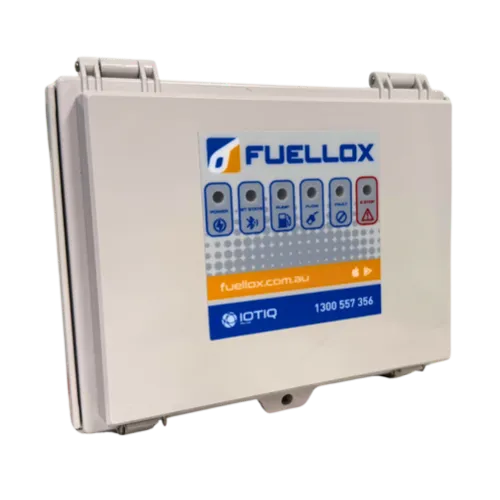

The Fuellox Eco is housed in a robust IP66 ABS plastic enclosure.

Installation Wiring

Electrical Hazard!

Fuellox 240VAC systems must be installed by a licensed and qualified electrican.

240VAC Compliance Requirement

Where the power source is 240 VAC, fit a key-operated lock to the enclosure door via the provided hole to secure it closed.

Installation Steps

1. Mount the Fuellox Eco enclosure.
2. Drill the cover plate to allow cable entries as required using suitable cable glands. Pass all cables through the glands to maintain IP integrity.
3. Follow the connection diagram below depending on your voltage requirements.
4. Connect the flow meter to J7 on the board as indicated. It is recommended to use screened cable to reduce the impact of electrical noise on the signal.
5. If required, fit the fuel tank level monitor to J10 on the board as indicated. https://docs.fuellox.com.au/products-fuellox/accessories/level/
6. Connect the nozzle switch to one of the inputs on J6 on the board. The inputs are user-configurable in the config tab in the app and any of the three inputs can be used and configured as required. They are active low and are wired between the input and ground. https://docs.fuellox.com.au/products-fuellox/accessories/nozzle-switch/
7. Once the installation is complete, carry out a dispense action by following this guide: https://docs.fuellox.com.au/gettingstarted/phase-5-first-dispense/

12/24V DC systems

Connect the DC Supply and Pump to the 12/24V supplied.

A max current of 30A is supplied via the Fuellox unit. For higher current pumps an additional relay is required.

For solenoid applications, simply connect the solenoid in place of the pump.

110/240V AC systems

Connect the AC Supply and Pump to the Mains Side. Be sure to maintain the earth connections.

3 Wire Pulse Meters (Hall)

Pin	Wire
J7 +VIN	Meter Power
J7 Pulse	Meter Signal
J7 0V	Meter 0V

2 Wire Pulse Meters (Reed)

Pin	Wire
J7 +VIN	Not Required
J7 Pulse	Meter Signal
J7 0V	Meter 0V

Nozzle Switch

Fuellox works with Normally Closed nozzle switches. ie Nozzle lift opens circuit

Pin	Wire
J6 IN1	Brown Wire
J6 0V	Blue Wire

Fuellox Level Module

Pin	Wire
J10 +VIN	Red Probe Wire
J10 Analog	Green Probe Wire

Final Wiring Stage

Ensure all wires are secured well.

Tighten all glands.

240VAC Compliance Requirement

If 240VAC is the power source - Lock the enclosure with a key operable lock to secure the door.

Commissioning

• Power up the unit.
• Ensure the Pump can be started/stopped from the app.
• Calibrate the Meter.
• Configure the Level Module where supplied.
• Test the system thoroughly prior to hand over to the end users.
• Confirm all data is recorded as expected on the Fuellox Cloud.

---
